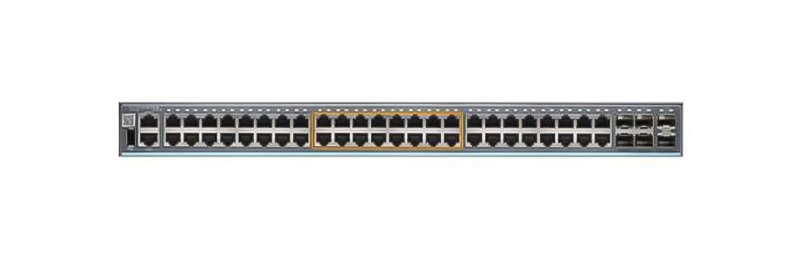

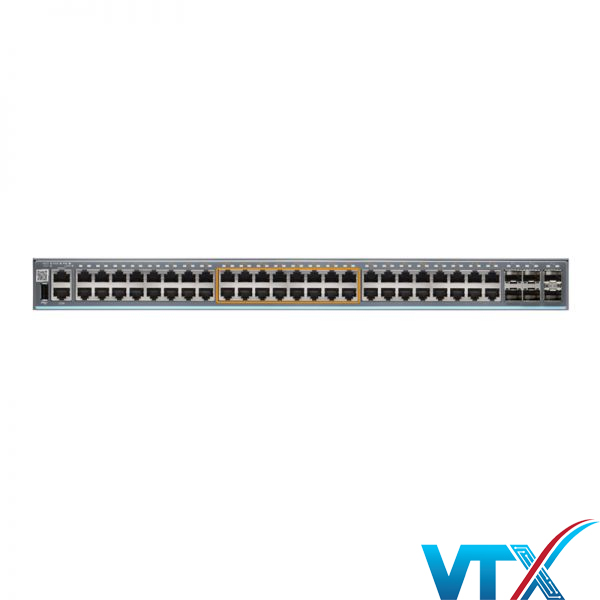

Switch Juniper 48 Port 10/100/1000BaseT EX2300-48MP
Bộ chuyển mạch Juniper uy tín, tuy không nhiều phân khúc như Cisco hay bất kỳ một thương hiệu nào khác nhưng những sản phẩm của Juniper lại có thể đảm nhiệm hoàn toàn các yêu cầu của một hệ thống.
EX2300-48MP hội tụ đầy đủ các tính năng được coi là giải pháp hoàn hảo cho các doanh nghiệp hiện nay, một số các tính năng phải nói đến như:
– Công nghệ khung gầm ảo cho phép tối đa 4 thiết bị EX2300-48MP được kết nối với nhau để tạo thành một thiết bị logic duy nhất
– Liên kết lên 4x1GbE SFP / 10GbE SFP + linh hoạt cung cấp kết nối tốc độ cao cho các bộ chuyển mạch lớp tổng hợp hoặc các thiết bị ngược dòng khác
– Hỗ trợ Ethernet hiệu quả năng lượng (EEE) được cung cấp trên các cổng 1GbE
– Quản lý đơn giản hóa sử dụng Juniper Networks Junos Space Network Director và J-Web GUI
– Cung cấp điện cố định và cổng đường lên đảm bảo đơn giản hoạt động
– Tiêu thụ điện năng thấp, quạt âm thanh thấp và dấu chân nhỏ sâu 10 inch cho phép triển khai linh hoạt, thân thiện với môi trường.
Thông số kỹ thuật Switch Juniper EX2300-48MP
Physical Specifications | |
Dimensions (W x H x D) | + Width: – 17.4 in (44.19 cm) for desktop installations – 17.5 in (44.6 cm) with rack-mount brackets + Height: 1.75 in (4.45 cm) for 1U installations + Depth: 14.5 in (36.83 cm) |
Backplane | 120 Gbps Virtual Chassis interconnect to link up to six switches as a single logical device |
Weight | 14.33 lb (6.5 kg) |
Environmental Ranges | + Operating temperature: 32° to 113° F (0° to 45° C) + Storage temperature: -40° to 158° F (-40° to 70° C) + Operating altitude: up to 13,000 ft (3962 m) at 40° C according to GR-63 + Non-operating altitude: up to 15,000 ft (4572 m) + Relative humidity operating: 10% to 85% (noncondensing) + Relative humidity non-operating: 0% to 95% (noncondensing) |
Max. System Power Consumption (Input Power without PoE) | 265 W AC |
Total PoE Power Budget | 740 W |
Hardware Specifications | |
Switching Engine Model | Store and forward |
DRAM | 2 GB |
Flash | 8 GB |
CPU | 1.25GHz ARM CPU |
GbE port density per system | 54 (48 host ports + six-port SFP/SFP+ uplinks) |
Supported Optics | + 10/100/1000BASE-T connector type RJ-45 + GbE SFP optic/connector type: RJ-45, or LC SFP fiber supporting 1000BASE-T SFP, SX (multimode), LX (singlemode), or LH (single-mode) |
Physical Layer | + Physical port redundancy: Redundant trunk group (RTG) + Cable diagnostics for detecting cable breaks and shorts + Auto MDI/MDIX (medium-dependent interface/mediumdependent interface crossover) support + Port speed downshift/setting maximum advertised speed on 10/100/1000BASE-T ports + Digital optical monitoring for optical ports |
Packet Switching Capacities | 176 Gbps |
Layer 2 Throughput (Mpps) | 130 Mpps (wire speed) |
Layer 2 Switching | + Maximum MAC addresses in hardware: 16,000 + Jumbo frames: 9216 bytes + Number of VLANs supported: 4093 + Range of possible VLAN IDs: 1-4094 + Port-based VLAN + MAC-based VLAN + Voice VLAN + Layer 2 Tunneling Protocol (L2TP) + IEEE 802.1ak: Multiple VLAN Registration Protocol (MVRP) + Compatible with Per-VLAN Spanning Tree Plus (PVST+) + RVI (Routed VLAN Interface) + IEEE 802.1AB: Link Layer Discovery Protocol (LLDP) + LLDP-MED with VoIP integration + IEEE 802.1ad Q-in-Q tunneling + IEEE 802.1br: Bridge Port Extension + IEEE 802.1D: Spanning Tree Protocol + IEEE 802.1p: CoS Prioritization + IEEE 802.1Q: VLAN Tagging + IEEE 802.1Q-in-Q: VLAN Stacking + IEEE 802.1s: Multiple Spanning Tree Protocol (MSTP) + Number of MST instances supported: 64 + Number of VSTP instances supported: 253 + IEEE 802.1w: Rapid Spanning Tree Protocol (RSTP) + IEEE 802.1X: Port Access Control + IEEE 802.3: 10BASE-T + IEEE 802.3u: 100BASE-T + IEEE 802.3ab: 1000BASE-T + IEEE 802.3z: 1000BASE-X + IEEE 802.3af: PoE + IEEE 802.3at: PoE+ + IEEE 802.3ad: Link Aggregation Control Protocol (LACP) + IEEE 802.3x: Pause Frames/Flow Control |
Layer 3 Features: IPv4 | + Maximum number of ARP entries: 1,500 + Maximum number of IPv4 unicast routes in hardware: 512 prefixes; 4,096 host routes + Maximum number of IPv4 multicast routes in hardware: 2,048 groups; 2,048 multicast routes + Routing Protocols: RIP v1/v2, OSPF v1/v2 + Static routing + Routing policy + Bidirectional Forwarding Detection (BFD) with slow timers (> 3 sec) + IP directed broadcast |
Layer 3 Features: IPv6 Management Functionality | + Maximum number of Neighbor Discovery (ND) entries: 1,500 + Maximum number of IPv6 unicast routes in hardware: 512 prefixes; 2,048 host routes + Maximum number of IPv6 multicast routes in hardware: 1,024 groups; 1,024 multicast routes + Neighbor discovery, system logging, Telnet, SSH, SNMP, Network Time Protocol (NTP), Domain Name System (DNS) + Static routing + Routing protocols: RIPng, OSPF v3, Multica |
Mọi thông tin chi tiết về sản phẩm Switch Juniper 48 Port 10/100/1000BaseT EX2300-48MP cũng như các sản phẩm switch chia mạng khác quý khách vui lòng liên hệ trực tiếp với Viễn Thông Xanh. Đến với chúng tôi bạn sẽ được tư vấn giải pháp, hỗ trợ kỹ thuật, cấu hình và triển khai thiết bị trên hệ thống cũng như cùng bạn khắc phục các sự cố trong quá trình triển khai. Hãy liên hệ với chúng tôi theo các số điện thoại trên Website để được tư vấn tốt nhất.
