Ethernet Interface

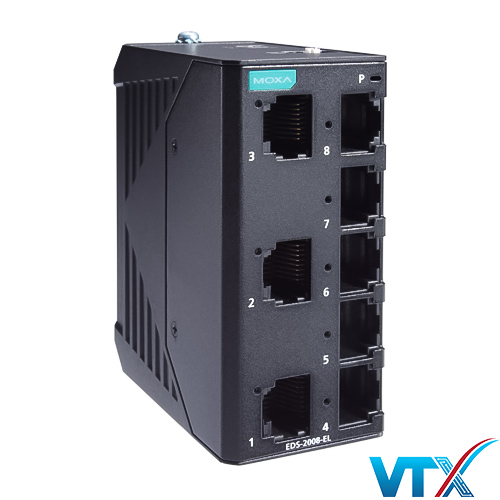

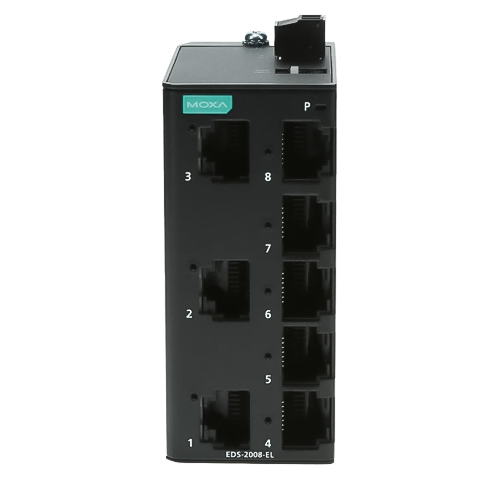

• • 10/100BaseT(X) Ports (RJ45 connector) :EDS-2008-EL: 8
    EDS-2008-EL-M-ST: 7

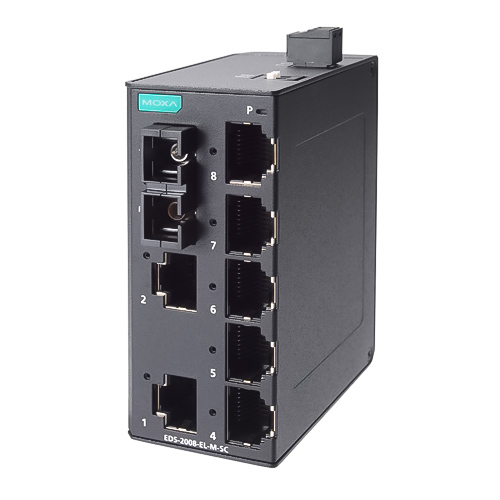

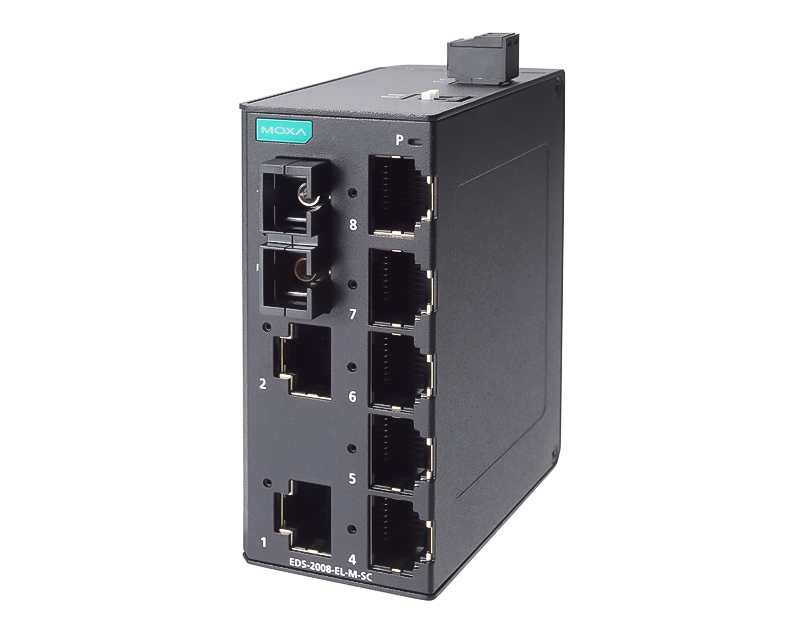

    EDS-2008-EL-M-SC: 7
    Full/Half duplex mode
    Auto MDI/MDI-X connection
    Auto negotiation speed
  • 100BaseFX Ports (multi-mode SC connector) : EDS-2008-EL-M-SC: 1
  • 100BaseFX Ports (multi-mode ST connector) : EDS-2008-EL-M-ST: 1
  • Standards : IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X) and 100BaseFX
    IEEE 802.3x for flow control
    IEEE 802.1p for Class of Service

Switch Properties

• • Processing Type : Store and Forward
  • MAC Table Size : 8 K
  • Packet Buffer Size : 4 Mbits

DIP Switch Configuration

• • Ethernet Interface : Quality of Service (QoS), Broadcast Storm Protection (BSP)

Power Parameters

• • Connection : 1 removable 2-contact terminal block(s)
  • Input Current : EDS-2008-EL: 0.067A @ 24 VDC
    EDS-2008-EL-M-ST/EDS-2008-EL-M-SC: 0.105A @ 24 VDC
  • Input Voltage : 12/24/48 VDC
  • Operating Voltage : 9.6 to 60 VDC
  • Overload Current Protection : Supported
  • Reverse Polarity Protection : Supported

Physical Characteristics

• • Installation : DIN-rail mounting, Wall mounting (with optional kit)
  • Weight : 163 g (0.36 lb)
  • Housing : Metal
  • Dimensions : EDS-2008-EL: 36 x 81 x 65 mm (1.4 x 3.19 x 2.56 in)
    EDS-2008-EL-M-ST: 36 x 81 x 70.9 mm (1.4 x 3.19 x 2.79 in)
    EDS-2008-EL-M-SC: 36 x 81 x 67.9 mm (1.4 x 3.19 x 2.67 in)

Environmental Limits

• • Ambient Relative Humidity : 5 to 95% (non-condensing)
  • Operating Temperature : EDS-2008-EL/EDS-2008-EL-M-SC/EDS-2008-EL-M-ST: -10 to 60°C (14 to 140°F)
    EDS-2008-EL-T/EDS-2008-EL-M-SC-T/EDS-2008-EL-M-ST-T: -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included) : -40 to 85°C (-40 to 185°F)

Standards and Certifications

• • Safety : UL 61010-2-201, EN 62368-1 (LVD)
  • EMC : EN 55032/35
  • EMI : CISPR 22, 32, FCC Part 15B Class A
  • EMS : IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF
  • Shock :IEC 60068-2-27
  • Vibration : IEC 60068-2-6
  • Freefall : IEC 60068-2-32

MTBF

• • Time : 3,472,660 hrs
  • Standards: Telcordia (Bellcore), GB
