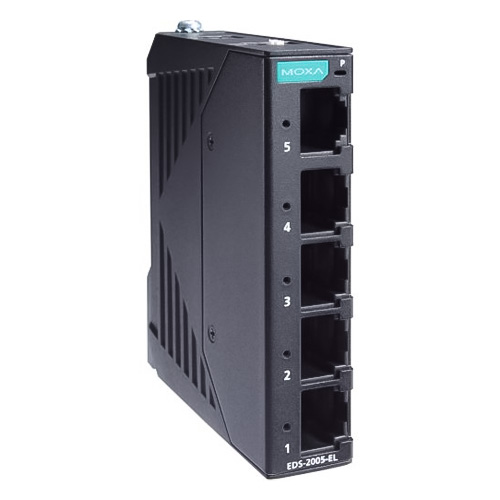

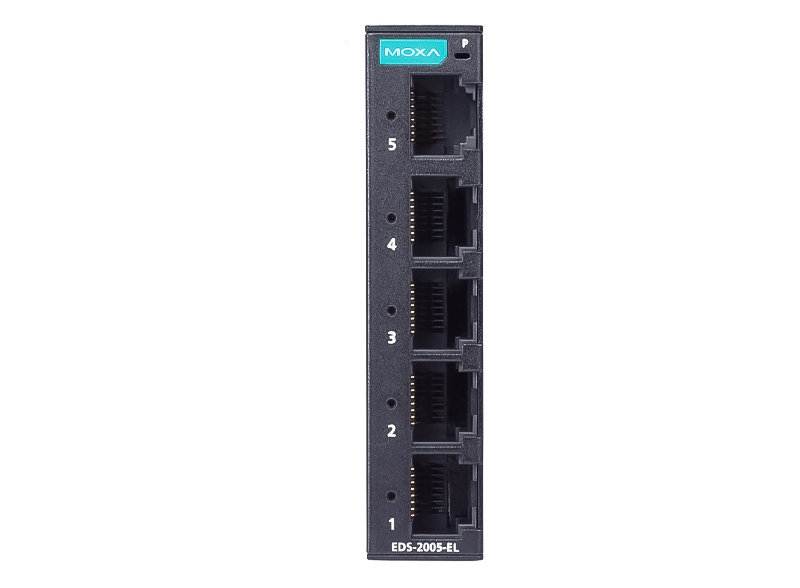

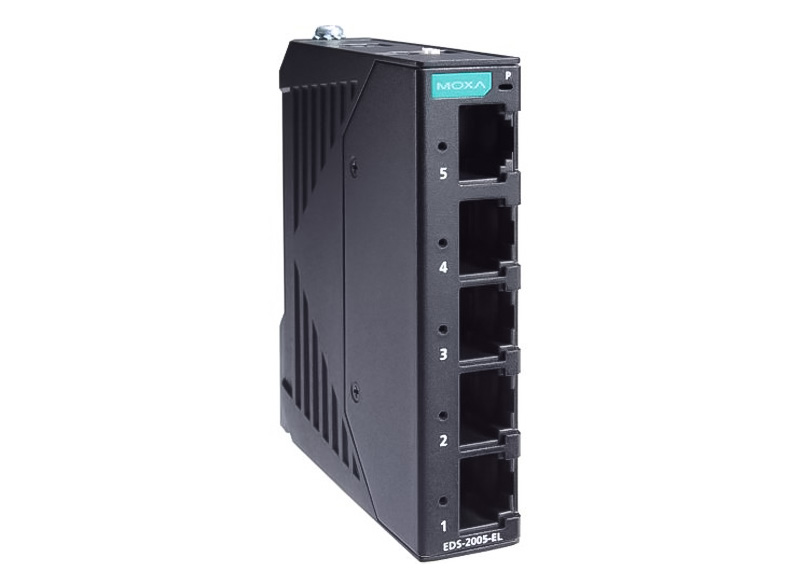

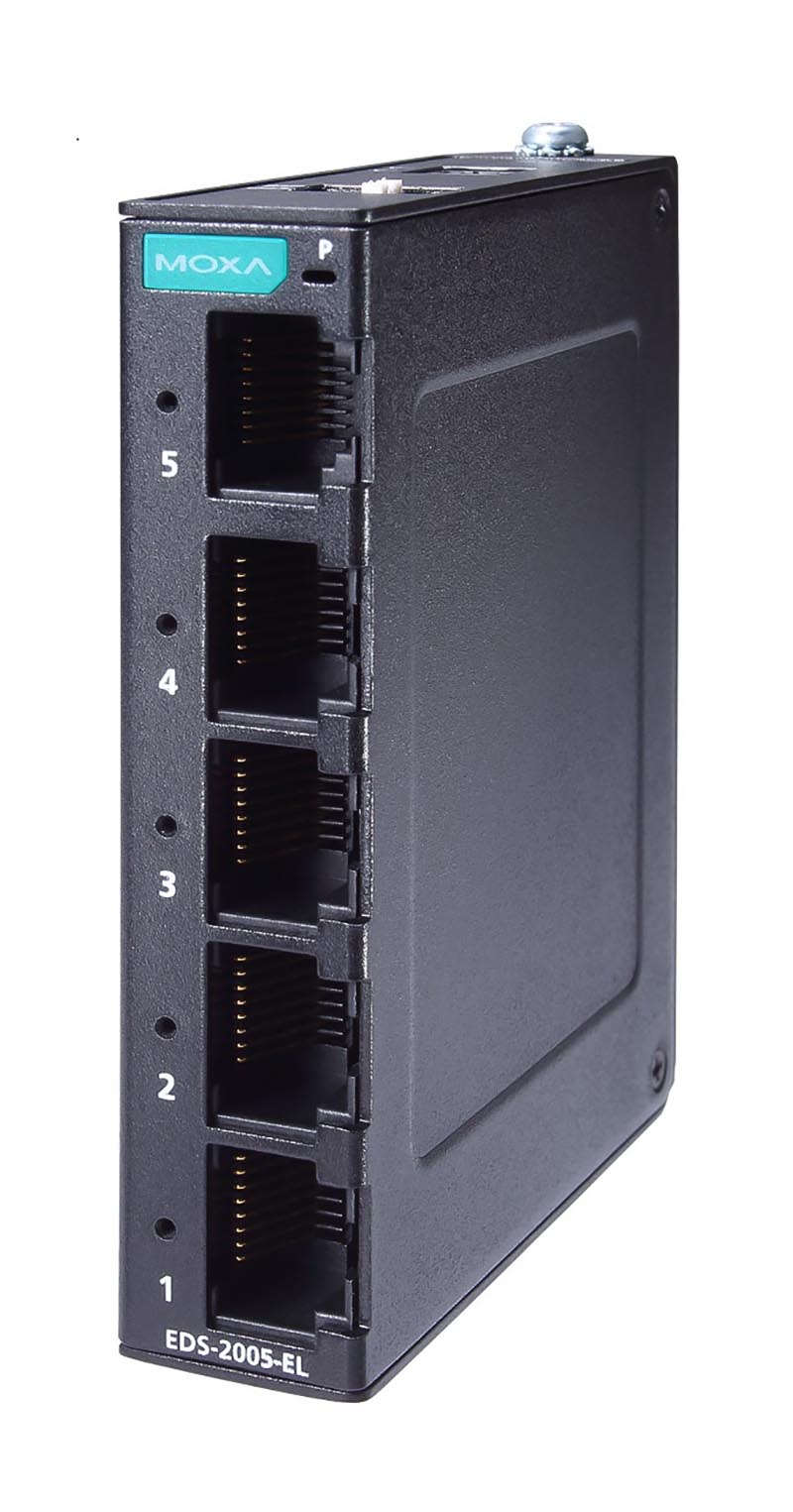

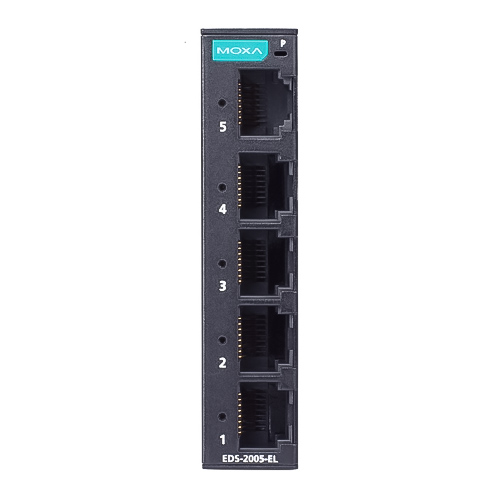

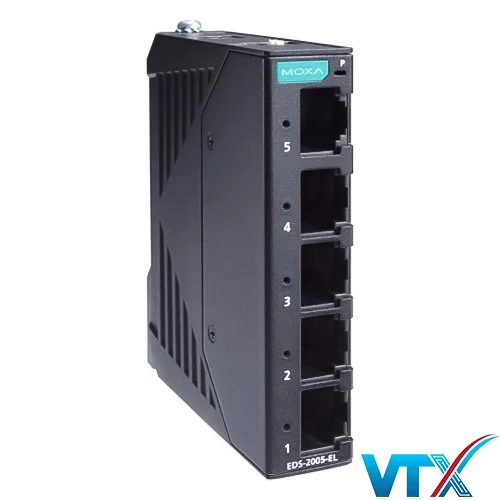

• 10/100BaseT(X) Ports (RJ45 connector) : 5
  Full/Half duplex mode
  Auto MDI/MDI-X connection
  Auto negotiation speed
• Standards :   IEEE 802.3 for 10BaseT
  IEEE 802.1p for Class of Service
  IEEE 802.3u for 100BaseT(X)
  IEEE 802.3x for flow control

Switch Properties

• Processing Type : Store and Forward
• MAC Table Size : 8 K
• Packet Buffer Size : 4 Mbits

DIP Switch Configuration

• Ethernet Interface : Quality of Service (QoS), Broadcast Storm Protection (BSP)

Power Parameters

• Connection :   1 removable 2-contact terminal block(s)
• Input Current : 0.045 A @ 24 VDC
• Input Voltage : 12/24/48 VDC
• Operating Voltage : 9.6 to 60 VDC
• Overload Current Protection : Supported
• Reverse Polarity Protection : Supported

Physical Characteristics

• Dimensions : 18 x 81 x 65 mm (0.7 x 3.19 x 2.56 in)
• Installation : DIN-rail mounting, Wall mounting (with optional kit)
• Weight : 105 g (0.23 lb)
• Housing : Metal

Environmental Limits

• Ambient Relative Humidity : 5 to 95% (non-condensing)
• Operating Temperature : EDS-2005-EL: -10 to 60°C (14 to 140°F)
  EDS-2005-EL-T: -40 to 75°C (-40 to 167°F)
• Storage Temperature (package included) : -40 to 85°C (-40 to 185°F)

Standards and Certifications

• Safety :  UL 61010-2-201, EN 62368-1 (LVD)
• EMC : EN 55032/35
• EMI : CISPR 22, 32, FCC Part 15B Class A
• EMS : IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF
• Shock : IEC 60068-2-27
• Vibration : IEC 60068-2-6
• Freefall : IEC 60068-2-32

MTBF

• Time : 4,814,369 hrs
• Standards : Telcordia (Bellcore), GB
