| Hardware Specifications |
|

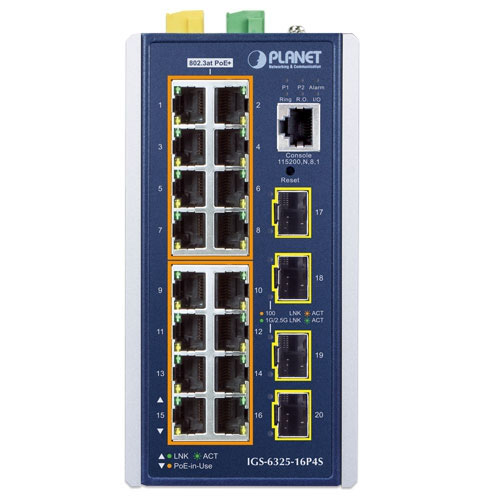

| Copper Ports |
16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP Slots |
4 1000BASE-SX/LX/BX SFP interfaces (Port-17 to Port-20)<br>Compatible with 100BASE-FX and 2500BASE-X SFP |
| PoE Injector Port |
16 ports with 802.3at/af PoE injector function (Port-1 to Port-16) |
| Console |
1 x RJ45-to-RS232 serial port (115200, 8, N, 1) |
| Reset Button |
< 5 sec: System reboot<br>> 5 sec: Factory default |
| ESD Protection |
6KV DC |

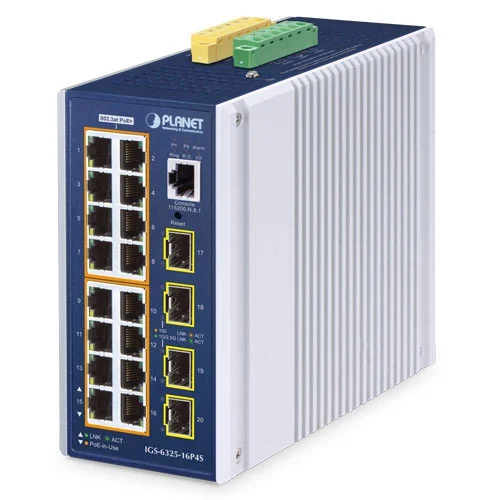

| Enclosure |
IP30 aluminum case |
| Installation |
DIN-rail kit and wall-mount kit |

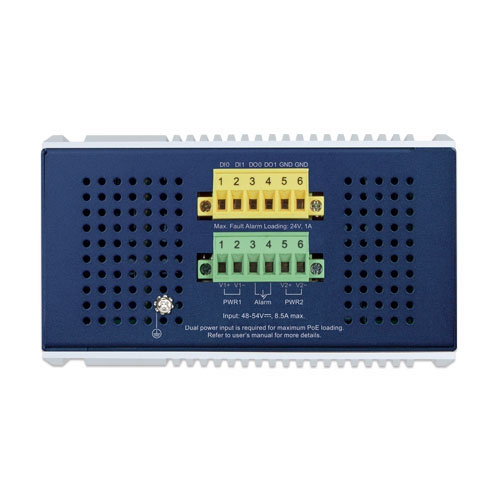

| Connector |
Removable 6-pin terminal block for power input<br>Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2<br>Removable 6-pin terminal block for DI/DO interface<br>Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND |
| Alarm |
One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC |
| Digital Input |
2 digital input (DI)<br>Level 0: -24V2.1V (±0.1V)<br>Level 1: 2.1V24V (±0.1V)<br>Input load to 24V DC, 10mA max. |
| Digital Output |
2 digital output (DO)<br>Open collector to 24V DC, 100mA max. |
| Dimensions (W x D x H) |
76 x 135 x 152 mm |
| Weight |
1530g |
| Power Requirements |
Dual 48~54V DC (>51V DC for PoE+ output recommended) |
| Power Consumption |
Max. 17.4 watts/59.334BTU (Power on without any connection)<br>Max. 394 watts/1343.54BTU (Full loading with PoE function) |
| LED Indicator |
System:<br>Power 1 (Green)<br>Power 2 (Green)<br>Fault Alarm (Red)<br>Ring (Green)<br>Ring Owner (Green)<br>DIDO (Red)<br>Per 10/100/1000T RJ45 PoE+ Ports:<br>PoE-in-Use (Amber)<br>LNK/ACT (Green)<br>Per SFP Interface:<br>100 LNK/ACT (Amber)<br>1G/2.5G LNK/ACT (Green) |
| Switching Specifications |
|
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
52Gbps/non-blocking |
| Throughput (packet per second) |
38.6Mpps@ 64 bytes packet |
| Address Table |
16K entries, automatic source address learning and aging |
| Shared Data Buffer |
32Mbits |
| Jumbo Frame |
10K bytes |
| Flow Control |
IEEE 802.3x pause frame for full duplex<br>Back pressure for half duplex |
| Power Over Ethernet |
|
| PoE Standard |
IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type |
End-span |
| PoE Power Output |
IEEE 802.3af Standard<br>Per port 48V51V DC, max. 15.4 watts<br>IEEE 802.3at Standard<br>Per port 51V54V DC, max. 36 watts |
| Power Pin Assignment |
1/2(+), 3/6(-) |
| PoE Power Budget |
Signal Power input<br>240W maximum (depending on power input)<br>Dual Power input<br>360W maximum (depending on power input)<br>※Dual power input must be the same as DC voltage, like dual 54V |
| Max. Number of Class 2 PDs |
16 |
| Max. Number of Class 3 PDs |
16 |
| Max. Number of Class 4 PDs |
10 |
| PoE Management Functions |
|
| Enhanced PoE Mode |
Standard/Legacy/Force |
| PoE Management |
PD Alive Check<br>Scheduled Power Recycling<br>PoE Schedule<br>PoE Usage Monitoring<br>PoE Extension |
| Active PoE Device Live Detection |
Yes |
| PoE Power Recycling |
Yes, daily or predefined schedule |
| PoE Schedule |
4 schedule profiles |
| PoE Extend Mode |
Yes, max. up to 160 meters |
| Layer 3 Function |
|
| IP Interfaces |
Max. 128 VLAN interfaces |
| Routing Table |
Max. 128 routing entries<br>Max. 4K H/W routing table entries |
| Routing Protocols |
IPv4 hardware static routing<br>IPv6 hardware static routing<br>IPv4 RIPv2<br>IPv4 OSPFv2 dynamic routing<br>IPv6 OSPFv3 dynamic routing |
| Layer 2 Function |
|
| Port Configuration |
Port disable/enable<br>Auto-negotiation 10/100/1000Mbps full and half duplex mode selection<br>Flow control disable/enable<br>Power saving mode control |
| Port Status |
Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status |
| Port Mirroring |
TX / RX / Both<br>Many-to-1 monitor<br>RMirror – Remote Switched Port Analyzer (Cisco RSPAN)<br>Supports up to 5 sessions |
| VLAN |
IEEE 802.1Q tag-based VLAN, up to 255 VLAN groups<br>IEEE 802.1ad Q-in-Q tunneling<br>Private VLAN Edge (PVE)<br>MAC-based VLAN<br>Protocol-based VLAN<br>Voice VLAN<br>MVR (Multicast VLAN Registration)<br>GVRP (GARP VLAN Registration Protocol)<br>Up to 4K VLAN groups, out of 4094 VLAN IDs |
| Link Aggregation |
IEEE 802.3ad LACP/static trunk<br>Supports<br>Static Port Trucking, (20 ports/10 groups max.)<br>Dynamic LACP-(20 ports/10 groups max.) |
| Spanning Tree Protocol |
IEEE 802.1D Spanning Tree Protocol<br>IEEE 802.1w Rapid Spanning Tree Protocol<br>IEEE 802.1s Multiple Spanning Tree Protocol<br>BPDU Guard |
| IGMP Snooping |
IPv4 IGMP (v1/v2/v3) snooping, up to 255 multicast groups<br>IPv4 IGMP querier mode support<br>IPv4 IGMP Snooping port filtering<br>Multicast VLAN Registration |
| MLD Snooping |
IPv6 MLD (v1/v2) snooping, up to 255 multicast groups<br>IPv6 MLD querier mode support |
| Bandwidth Control |
Per port bandwidth control<br>Ingress: 500Kb1000Mbps<br>Egress: 500Kb1000Mbps |
| RING |
Support ERPS, complies with ITU-T G.8032v1 and v2<br>Recovery time < 50ms |
| Synchronization |
IEEE 1588v2 PTP (Precision Time Protocol)<br>Peer-to-peer transparent clock<br>End-to-end transparent clock |
| QoS |
Traffic classification based, strict priority and WRR<br>8-level priority for switching<br>Port number<br>802.1p priority<br>802.1Q VLAN tag<br>DSCP/TOS field in IP packet |
| Security Functions |
|
| Access Control List |
IP-based ACL/MAC-based ACL<br>ACL based on:<br>MAC Address<br>IP Address<br>Ethertype<br>Protocol Type<br>VLAN ID<br>DSCP<br>802.1p Priority<br>Up to 512 entries |
| Security |
Port security<br>IP source guard, up to 512 entries<br>Dynamic ARP inspection, up to 1K entries<br>Command line authority control based on user level<br>Static MAC address, up to 64 entries |
| AAA |
RADIUS client<br>TACACS+ client |
| Network Access Control |
IEEE 802.1x port-based network access control<br>MAC-based authentication<br>Local/RADIUS authentication |
| Management |
|
| Basic Management Interfaces |
Console; Telnet; Web browser; SNMP v1, v2c |
| Secure Management Interfaces |
SSHv2, TLSv1.2, SNMP v3 |
| System Management |
Firmware upgrade by HTTP protocol through Ethernet network<br>Configuration upload/download through HTTP<br>LLDP protocol<br>NTP<br>PLANET Smart Discovery Utility<br>PLANET CloudViewerPro app |
| Event Management |
Remote Syslog<br>System log<br>SMTP |
| ONVIF |
ONVIF device discovery<br>ONVIF device monitoring<br>Floor map |
| SNMP MIBs |
RFC 1213 MIB-II<br>RFC 2863 IF-MIB<br>RFC 1493 Bridge MIB<br>RFC 1643 Ethernet MIB<br>RFC 2863 Interface MIB<br>RFC 2819 RMON MIB (1, 2, 3, 9)<br>RFC 2737 Entity MIB<br>RFC 2618 RADIUS client MIB<br>RFC 3411 SNMP-Frameworks-MIB<br>IEEE 802.1X PAE<br>LLDP<br>Private MIB |
| Standards Conformance |
|
| Regulatory Compliance |
FCC Part 15 Class A<br>CE<br>EN55032<br>EN55024<br>EN61000-6-2<br>EN61000-6-4<br>EN61000-4-2<br>EN61000-4-3<br>EN61000-4-4<br>EN61000-4-5<br>EN61000-4-6<br>EN61000-4-8<br>EN61000-4-11 |
| Standards Compliance |
IEEE 802.3 10BASE-T<br>IEEE 802.3u 100BASE-TX<br>IEEE 802.3ab 1000BASE-T<br>IEEE 802.3z Gigabit SX/LX<br>IEEE 802.3bz 2.5GBASE-T<br>IEEE 802.3x Flow Control<br>IEEE 802.3ad Link Aggregation Control Protocol<br>IEEE 802.1p Class of Service<br>IEEE 802.1Q VLAN Tagging<br>IEEE 802.1d Spanning Tree Protocol<br>IEEE 802.1s Multiple Spanning Tree Protocol<br>IEEE 802.1w Rapid Spanning Tree Protocol<br>IEEE 802.1x Port Authentication Network Control<br>IEEE 802.3at Power over Ethernet Plus |
| Environment |
|
| Operating Temperature |
-40 ~ 75 degrees C |
| Operating Humidity |
5 ~ 95% (non-condensing) |
| Storage Temperature |
-40 ~ 85 degrees C |
| Storage Humidity |
5 ~ 95% (non-condensing) |
