Hardware |
Standard |
Compliant with ADSL Standard |
– Full-rate ANSI T1.413 Issue 2 |
– G.dmt (ITU G.992.1) |
– G.lite (ITU G.992.2) |
– G.hs, Multimode (ITU G.994.1) |
Capable of ADSL2 Standard |
– G.dmt.bis (ITU G.992.3) |
Capable of ADSL2+ Standard |
– G.dmt.bisplus (ITU G.992.5) |
– Reach Extended ADSL (RE ADSL) |
Supports Annex A, M, L |
Protocol |
RFC 2364 – PPP over ATM (LLC/VCMUX) |
RFC 2516 – PPP over Ethernet (LLC/VCMUX) |
RFC 1483 – Classic IP over ATM (LLC/VCMUX) |
RFC 2684 – Bridged IP over ATM (LLC/VCMUX) |
RFC 2684 – Routed IP over ATM (LLC/VCMUX) |
AAL and ATM Support |
Supports up to 8 PVCs |
ATM Forum UNI 3.1/4.0 PVC |
VC and LLC Multiplexing |
Integrated ATM AAL5 support (UBR,CBR,VBR-rt and VBR-nrt) |
0~255 VPI plus 1~65535 VCI address range |
OAM F4 & F5 Segment end-to-end loop-back, AIS, and RDI OAM cells |

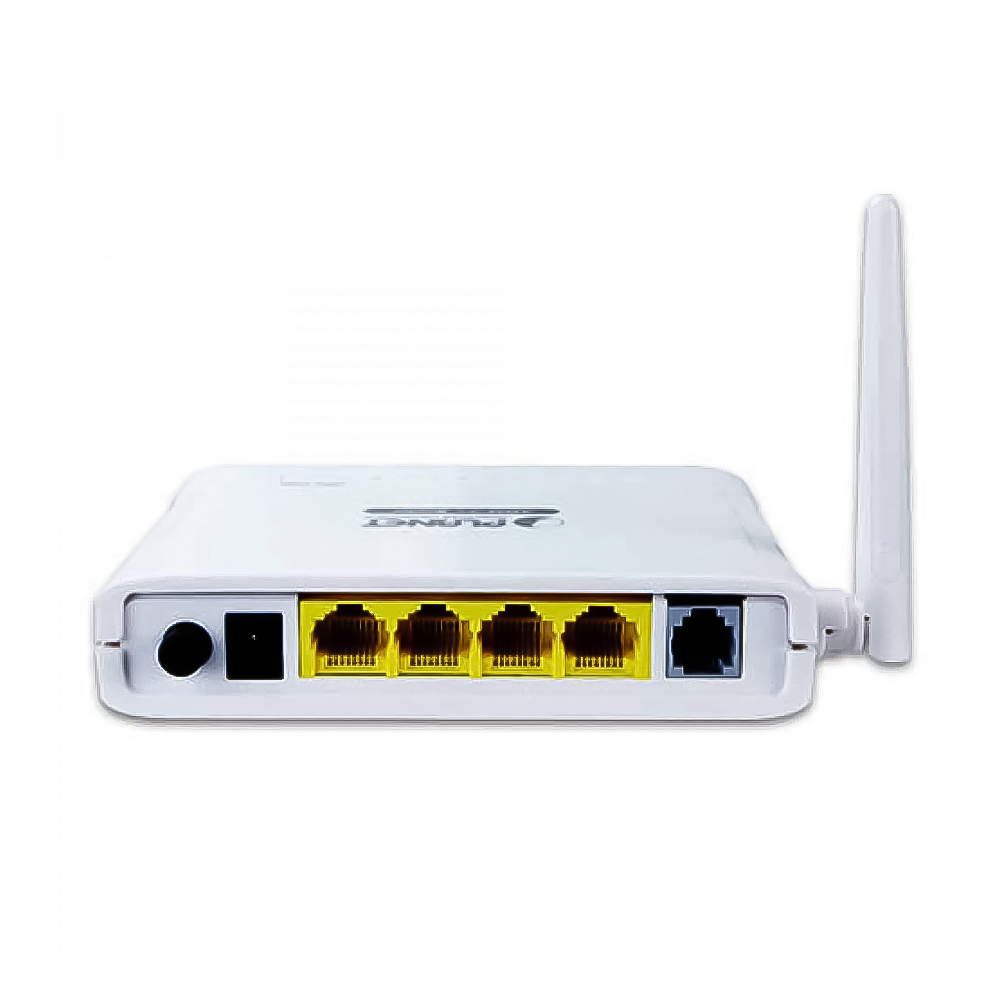

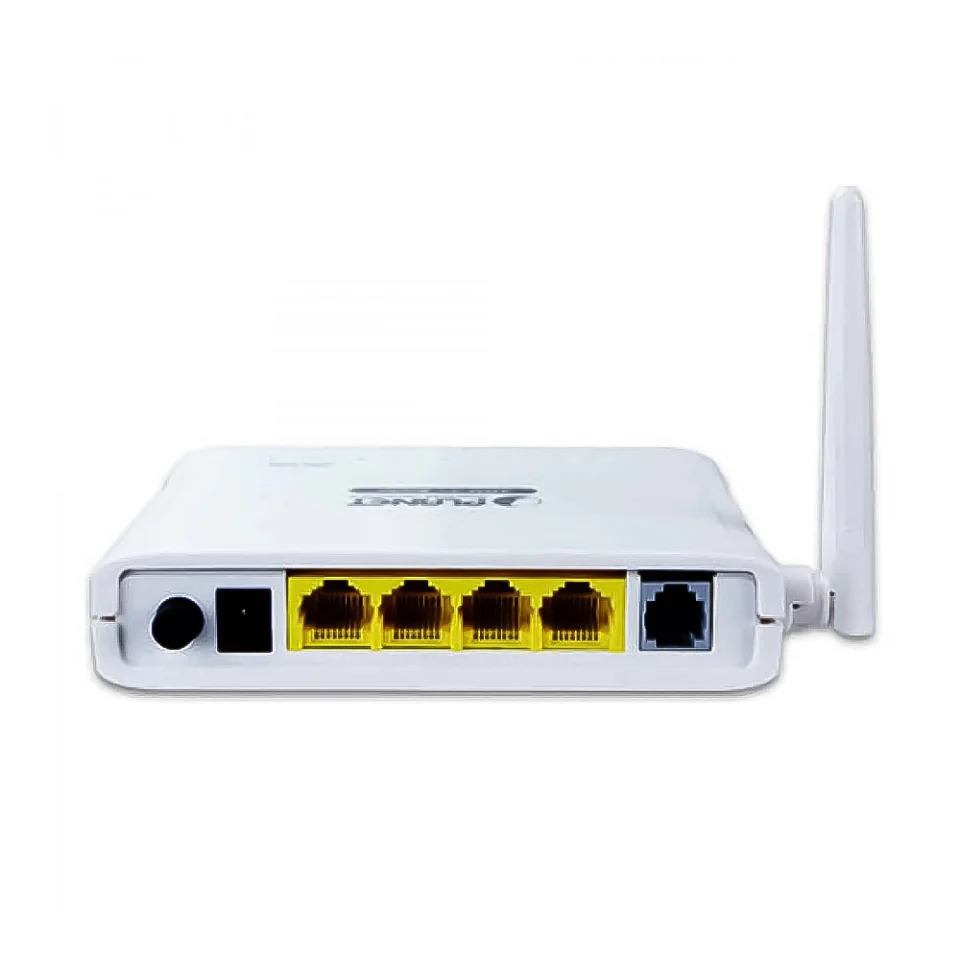

Ports |
LAN: 4 x Ethernet (10/100Mbps, auto-negotiation, auto MDI/MDI-X) |
WLAN: 1 x 802.11b/g/n Access Point with one 2dBi dipole antenna |
WAN: 1 x RJ11 |
LED Indicators |
PWR, Link, Data, LAN 1~4, WLAN, WPS |
Button |
Reset, WPS, Power |
Max. Concurrent Sessions |
2048 |
Wireless Standard |
IEEE 802.11b, g and 802.11n |
Wireless Frequency |
2.4 to 2.4835GHz (Industrial Scientific Medical Band) |
Wireless Channels |
Maximum 14 Channels, depending on regulatory authorities |
Wireless Data Encryption |
64 bit / 128 bit WEP, WPA-PSK / WPA2-PSK and WPS PBC |
Wireless Data Rate |
Maximum up to 150 Mbps |
IEEE 802.11b: 1/2/5.5/11Mbps |
IEEE 802.11g: 6/9/12/18/24/36/48/54Mbps |
IEEE 802.11n: 14/29/43/58/87/116/130/144Mps in 20MHz; 30/60/90/120/150Mbps in 40MHz |
RF Modulation |
IEEE 802.11b mode: DSSS (CCK,QPSK,BPSK) |
IEEE 802.11g mode: OFDM (BPSK,QPSK,16QAM,64QAM) |
HT20 and HT40: 64 QAM, 16QAM, QPSK, BPSK |
Transmit Power |
IEEE 802.11b: 16.5dBm ± 1.5dBm |
IEEE 802.11g: 14dBm ± 1.5dBm |
IEEE 802.11n HT20M:13dbm ± 1.5dBm |
IEEE 802.11n HT40M: 13dbm ± 1.5dBm |
Receiver Sensitivity |
IEEE 802.11b: < -80dBm |
IEEE 802.11g: < -68dBm |
IEEE 802.11n HT20M: < -64dbm |
IEEE 802.11n HT40M: < -61dbm |
Software |
Protocols/Features |
NAT supports multimedia applications |
NAT, Static Routing, and RIPv1/2 |
Transparent Bridging |
Dynamic Domain Name System (DDNS) |
SNTP |
DNS relay and IGMP proxy |
DMZ and Virtual Server |
Quality of Service (QoS) for Traffic Prioritization |
TR-069 Ready |
UPnP |
Security |
PPP over PAP (Password Authentication Protocol, RFC 1334) |
PPP over CHAP (Challenge Authentication Protocol, RFC 1994) |
DoS Protection |
Access Control |
ACL (Access Control) |
IP / MAC / URL Filter |
Stateful Packet Inspection (SPI) Firewall |
Password protection for system management |
Management |
Web-based configuration |
Embedded Telnet server for remote and local management |
Firmware upgraded and configuration data upload/download via Web |
Support DHCP Server/Client/Relay |
Built-in diagnostic tool |
TR-069 |
Environment Specifications |
Dimensions |
117 x 100 x 25 mm |
Power |
12VDC, 0.5A |
Emission |
FCC, CE |
