6 GHz: 2402 Mbps (802.11ax)

5 GHz: 2402 Mbps (802.11ax)

2.4 GHz: 574 Mbps (802.11ax)

6× Fixed High-Performance Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming: Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM: Improves transmission power to strengthen signal coverage

Tri-Band: Allocate devices to different bands for optimal performance

OFDMA: Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness: Improves network efficiency by limiting excessive occupation

DFS: Access an extra band to reduce congestion

6 Streams: Connect your devices to more bandwidth

Access Point Mode

Access Control

IP & MAC Binding

Application Layer Gateway

HomeShield Security: Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner

1× 5 GHz Guest Network,

1× 2.4 GHz Guest Network

PPTP VPN Server

L2TP VPN Server

PPTP VPN Client

L2TP VPN Client

WPA2,

WPA3,

WPA/WPA2-Enterprise (802.1x)

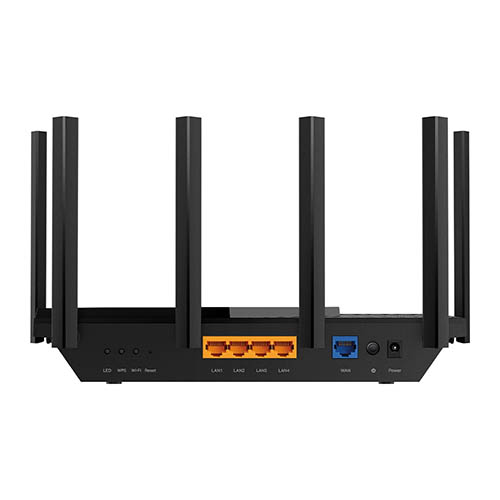

Ethernet Ports: 1× Gigabit WAN Port, 4× Gigabit LAN Ports

USB Support: 1× USB 3.0 Port

Supported Partition Formats: NTFS, exFAT, HFS+, FAT32

Supported Functions: Apple Time Machine, FTP Server, Media Server, Samba Server

Buttons: Wi-Fi On/Off Button, Power On/Off Button, LED On/Off Button, WPS Button, Reset Button

Power: 12 V ⎓ 2.5 A

Service Kits: HomeShield

OneMesh™: OneMesh™ Supported

Parental Controls: HomeShield Parental Controls, Custom Profiles, Professional Content Filter Library, Family Time, Bedtime, Off Time, Time Rewards, Family Online Time Ranking, Pause the Internet, Weekly and Monthly Reports

WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP

Quality of Service: QoS by Device

Cloud Service: Auto Firmware Upgrade, TP-Link ID, DDNS, NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP, Virtual Server

IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN

DHCP: Address Reservation, DHCP Client List, Server

DDNS: TP-Link, NO-IP, DynDNS

Management: Tether App, Webpage

Certifications: FCC, RoHS

Environment: Operating Temperature: 0℃~40℃ (32℉ ~104℉), Operating Humidity: 10%~90% non-condensing

FCC: ≤29dBm (2.4 GHz), ≤28dBm (5 GHz), ≤22dBm (6 GHz)

CE: ≤17dBm (2.4 GHz), ≤27dBm (5 GHz), ≤20dBm (6 GHz)

WiFi Reception Sensitivity:

2.4 GHz: 11ax HE20 MCS0:-95dBm, 11ax HE20 MCS11:-64dBm, 11ax HE40 MCS0:-92dBm, 11ax HE40 MCS11:-62dBm

5 GHz: 11ax HE20 MCS0:-94dBm, 11ax HE20 MCS11:-63dBm, 11ax HE40 MCS0:-91dBm, 11ax HE40 MCS11:-60dBm, 11ax HE80 MCS0:-88dBm, 11ax HE80 MCS11:-57dBm, 11ax HE160 MCS0:-85dBm, 11ax HE160 MCS11:-54dBm

6 GHz: 11ax HE20 MCS0:-93dBm, 11ax HE20 MCS11:-62dBm, 11ax HE40 MCS0:-90dBm, 11ax HE40 MCS11:-59dBm, 11ax HE80 MCS0:-87dBm, 11ax HE80 MCS11:-56dBm, 11ax HE160 MCS0:-84dBm, 11ax HE160 MCS11:-53dBm

Package Contents: Wi-Fi Router Archer AXE75, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide
