| Hardware Specifications |
|

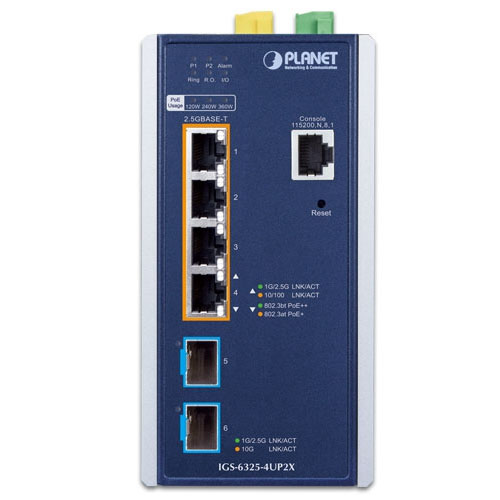

| Copper Ports |
4 x 2.5GBASE-T RJ45 auto negotiation ports |
|
Supports 2.5G/1G/100/10Mbps data rate |
| SFP+ Ports |
2 x 10GBASE-SR/LR SFP+ slots |
|
Backward compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP transceivers |
| PoE Injector Ports |
4 ports with 802.3bt PoE++ injector function, from Port-1 to Port-4 |
| Console |
1 x RJ45-to-RS232 serial port (115200, 8, N, 1) |
| Reset Button |
< 5 sec: System reboot |
|
> 5 sec: Factory default |

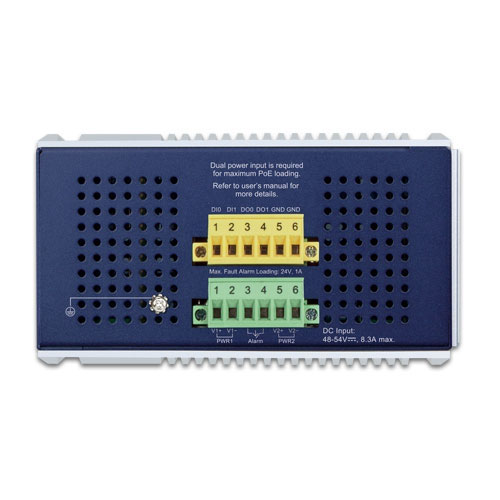

| Connector |
Removable 6-pin terminal block for power input |
|
Removable 6-pin terminal block for DI/DO interface |
| Alarm |
One relay output for power failure. Alarm relay current carry ability: 1A @ 24VDC |
| Digital Input (DI) |
2 digital inputs: |
|
Level 0: -24~2.1V (±0.1V) |
|
Level 1: 2.1~24V (±0.1V) |
| Digital Output (DO) |
2 digital outputs: |
|
Open collector to 24VDC, 100mA |

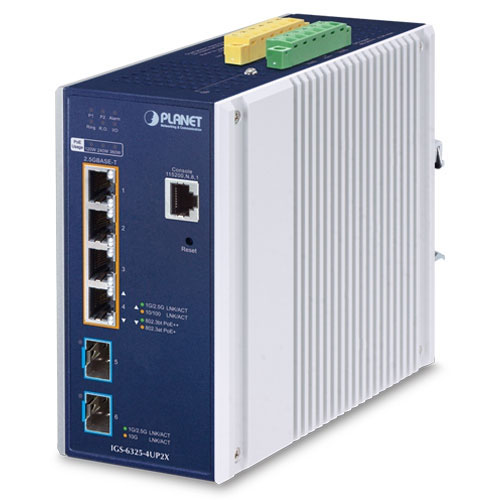

| Enclosure |
IP30 aluminum case |
| Installation |
DIN-rail or wall-mount |
| SDRAM |
512Mbytes |
| Flash Memory |
64Mbytes |
| Dimensions (W x D x H) |
76 x 135 x 152 mm |
| Weight |
1,319g |
| Power Requirements |
DC 48V-54V, 8.3A max. |
| Power Consumption |
48VDC Input: |
|
Max. 8.9 watts/30.4 BTU (Idle) |
|
Max. 379 watts/1293.2 BTU (Full load) |
|
54VDC Input: |
|
Max. 9.2 watts/31.4 BTU (Idle) |
|
Max. 381 watts/1300 BTU (Full load) |
| ESD Protection |
Contact 4KVDC; Air 8KVDC |
| Surge Protection |
2KVDC |
| Switching Specifications |
|
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
60Gbps/non-blocking |
| Throughput |
44.462Mpps@64Bytes |
| Address Table |
8K entries, automatic source address learning and aging |
| Shared Data Buffer |
32Mbits |
| Jumbo Frame |
10K bytes |
| Flow Control |
IEEE 802.3x pause frame for full duplex |
|
Back pressure for half duplex |
| Power over Ethernet |
|
| PoE Standard |
IEEE 802.3bt PoE++ Type-4 |
| Power Pin Assignment |
802.3bt/UPoE: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Power Output |
Per port 48V ~ 54VDC |
| PoE Power Budget |
Single power input: 240W maximum (depending on power input) |
|
Dual power input: 360W maximum (depending on power input) |
| Number of 90W 802.3bt Type-4 PDs |
4 |
| Number of 60W 802.3bt Type-3 PDs |
4 |
| Number of 30W 802.3at Type-2 PDs |
4 |
| PoE Management Functions |
|
| Enhanced PoE Mode |
Standard/Legacy/Force |
| PoE Management |
PD Alive Check |
|
Scheduled Power Recycling |
|
PoE Schedule |
|
PoE Usage Monitoring |
|
PoE Extension |
| Active PoE Device Live Detection |
Yes |
| PoE Power Recycling |
Yes, daily or predefined schedule |
| PoE Schedule |
4 schedule profiles |
| PoE Extend Mode |
Yes, max. up to 160 meters |
| Layer 3 Functions |
|
| IP Interfaces |
Max. 32 VLAN interfaces |
| Routing Table |
Max. 32 static routing entries |
|
Max. 1K routing table entries |
| Routing Protocols |
IPv4 RIPv2 |
|
IPv4 OSPFv2 |
|
IPv6 OSPFv3 |
|
IPv4 hardware static routing |
|
IPv6 hardware static routing |
| Layer 2 Functions |
|
| Port Configuration |
Port disable/enable |
|
Auto-negotiation 10/100/1000/2500Mbps full and half duplex mode selection |
|
Flow control disable/enable |
|
Port link capability control |
| Port Status |
Display of each port’s status |
| Port Mirroring |
TX/RX/Both |
|
Many-to-1 monitor |
|
RMirror – Remote Switched Port Analyzer (Cisco RSPAN) |
|
Supports up to 5 sessions |
| VLAN |
IEEE 802.1Q tagged VLAN |
|
IEEE 802.1ad Q-in-Q tunneling |
|
Private VLAN Edge (PVE) |
|
MAC-based VLAN |
|
Protocol-based VLAN |
|
Voice VLAN |
|
IP Subnet-based VLAN |
|
MVR (Multicast VLAN registration) |
|
GVRP |
|
Up to 4K VLAN groups, out of 4095 VLAN IDs |
| Link Aggregation |
IEEE 802.3ad LACP/static trunk |
|
Max. 3 trunk groups with max. 6 ports per trunk group |
| Spanning Tree Protocol |
IEEE 802.1D Spanning Tree Protocol |
|
IEEE 802.1w Rapid Spanning Tree Protocol |
|
IEEE 802.1s Multiple Spanning Tree Protocol |
|
Supports 7 MSTP instances |
|
BPDU Guard, BPDU filtering and BPDU transparent |
|
Root Guard |
| IGMP Snooping |
IPv4 IGMP (v1/v2/v3) snooping |
|
IPv4 IGMP querier mode support |
|
Supports 255 IGMP groups |
| MLD Snooping |
IPv6 MLD (v1/v2) snooping |
|
IPv6 MLD querier mode support |
|
Supports 255 MLD groups |
| Bandwidth Control |
Per port bandwidth control |
|
Ingress: 10Kbps~13128Mbps |
|
Egress: 10Kbps~13128Mbps |
| Ring |
Supports ERPS, and complies with ITU-T G.8032 |
|
Recovery time < 10ms @ 3 nodes |
|
Recovery time < 50ms @ 16 nodes |
|
Supports Major ring and sub-ring |
| Synchronization |
IEEE 1588v2 PTP (Precision Time Protocol) |
|
Peer-to-peer transparent clock |
|
End-to-end transparent clock |
| QoS |
Traffic classification based, strict priority and WRR |
|
8-level priority for switching: |
|
Port number |
|
802.1p priority |
|
802.1Q VLAN tag |
|
DSCP/ToS field in IP packet |
| Security Functions |
|
| Access Control List |
IP-based ACL/MAC-based ACL |
|
ACL based on various criteria |
|
Up to 512 entries |
| Security |
Port security |
|
IP source guard, up to 512 entries |
|
Dynamic ARP inspection, up to 1K entries |
|
Command line authority control based on user level |
|
Static MAC address, up to 64 entries |
| AAA |
RADIUS client |
|
TACACS+ client |
| Network Access Control |
IEEE 802.1x port-based network access control |
|
MAC-based authentication |
|
Local/RADIUS authentication |
| Management |
|
| Basic Management Interfaces |
Console; Telnet; Web browser; SNMP v1, v2c |
| Secure Management Interfaces |
SSHv2, SSL and SNMP v3 encrypted management traffic |
| Management Functions |
System status monitoring, including device and port status |
|
Configuration backup and restore |
|
Firmware upgradeable via HTTP, HTTPs, TFTP, FTP and SCP |
|
Dual firmware images |
|
User privilege levels control |
|
CLI (Command Line Interface) |
|
Web-based GUI |
|
SNMP trap and syslog message alert |
|
LLDP, LLDP-MED |
|
NTP, IEEE 802.1ab LLDP with ANSI/TIA-1057 |
|
NTP server/client |
|
DHCP client/server/relay |
| Environment |
|
| Temperature |
Operating: -40 to 75°C (-40 to 167°F) |
|
Storage: -40 to 85°C (-40 to 185°F) |
| Humidity |
Operating: 5% to 95% (non-condensing) |
|
Storage: 0% to 95% (non-condensing) |
| Standards Compliance |
|
| Regulatory Approvals |
CE, FCC Part 15 Class A |
|
RoHS compliant |
|
UL60950-1 |
|
TUV EN60950-1 |
|
CB IEC60950-1 |
|
EN61000-3-2, EN61000-3-3, EN61000-6-2, EN61000-6-4 |
| Warranty |
3-year |
