• 6 GHz: 11520 Mbps (802.11be)

• 5 GHz-1: 5760 Mbps (802.11be)

• 5 GHz-2: 5760 Mbps (802.11be)

• 2.4 GHz: 1376 Mbps (802.11be)

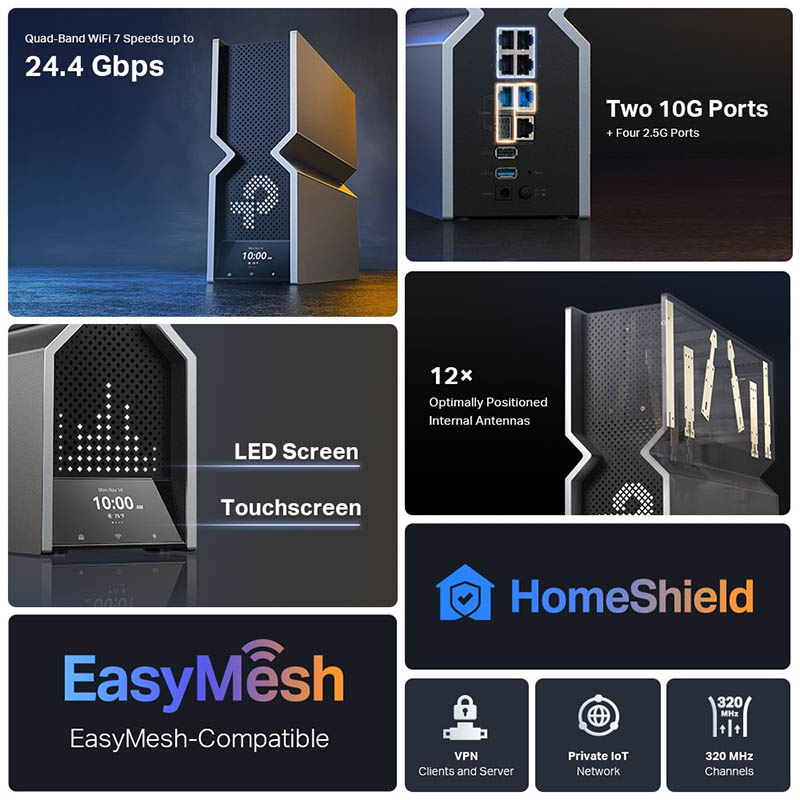

12× Optimally Positioned Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM

Improves transmission power to strengthen signal coverage

Quad-Band

Allocate devices to different bands for optimal performance

4×4 MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients

OFDMA

Simultaneously communicates with multiple clients

Airtime Fairness

Improves network efficiency by limiting excessive occupation

DFS

Access an extra band to reduce congestion

16 Streams

Connect your devices to more bandwidth

• Access Point Mode

• 4K-QAM

• EasyMesh-Compatible

• Works with Alexa and Google Assistant

• IoT Network

• Access Control

• IP & MAC Binding

• Application Layer Gateway

• HomeShield Security

Real-Time IoT Protection

Malicious Site Blocker

Intrusion Prevention System

DDoS Attack Prevention

Home Network Scanner

• 1× 5 GHz-1 Guest Network

• 1× 5 GHz-2 Guest Network

• 1× 2.4 GHz Guest Network

• PPTP VPN Server

• L2TP VPN Server

• WireGuard VPN Server

• PPTP VPN Client

• L2TP VPN Client

• WireGuard VPN Client

• WPA2

• WPA3

• WPA/WPA2-Enterprise (802.1x)

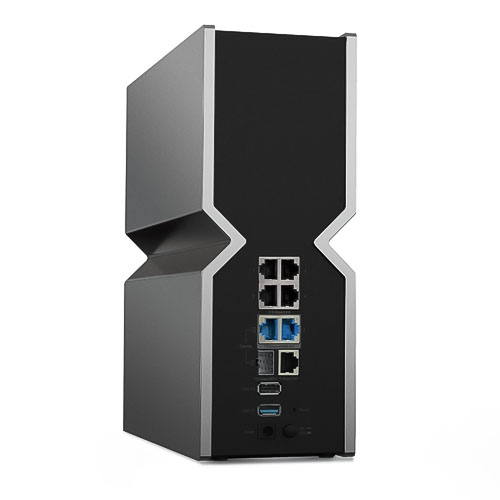

• 1× 10 Gbps SFP+/RJ45 Combo WAN/LAN

• 4× 2.5 Gbps LAN

• 1× 1 Gbps LAN

• Supported Partition Formats: NTFS, exFAT, HFS+, FAT32

• Supported Functions: FTP Server, Media Server, Samba Server

• Wi-Fi On/Off Button (Touchscreen)

• LED On/Off Button (Touchscreen)

• WPS Button (Touchscreen)

• Reset Button

• IPv6

Custom Profiles

Professional Content Filter Library

Family Time

Bedtime

Off Time

Time Rewards

Family Online Time Ranking

Pause the Internet

Weekly and Monthly Reports

• Static IP

• PPPoE

• PPTP

• L2TP

• TP-Link ID

• DDNS

• Port Triggering

• DMZ

• UPnP

• IGMP Snooping

• Bridge

• Tag VLAN

• DHCP Client List

• Server

• NO-IP

• DynDNS

• Webpage

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

• Operating Humidity: 10%~90% non-condensing

• Power Adapter

• RJ45 Ethernet Cable

• Quick Installation Guide
