| Hardware Specifications |
|
| Version |
2 |
| Copper Ports |
4 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP Slots |
2 x 100/1000/2500BASE-X mini-GBIC SFP ports |
| Console |
1 x RJ45-to-RS232 serial port (115200, 8, N, 1) |
| Reset Button |
< 5 sec: System reboot |
|
> 5 sec: Factory default |
| Enclosure |
IP30 metal case |
| Installation |
DIN-rail kit and wall-mount kit |

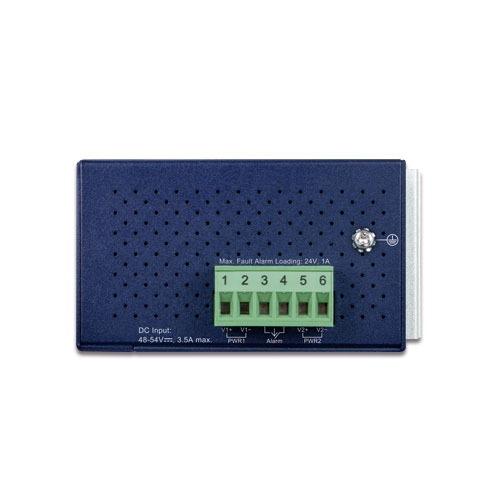

| Connector |
Removable 6-pin terminal block for power input |
| Dimensions (W x D x H) |
50 x 87 x 135 mm |
| Weight |
592g |
| Power Requirements |
48-54V |
| Power Consumption |
153 watts/522BTU (Full loading with PoE function with DC 54V input) |
| ESD Protection |
6KV DC |
| EFT Protection |
6KV DC |

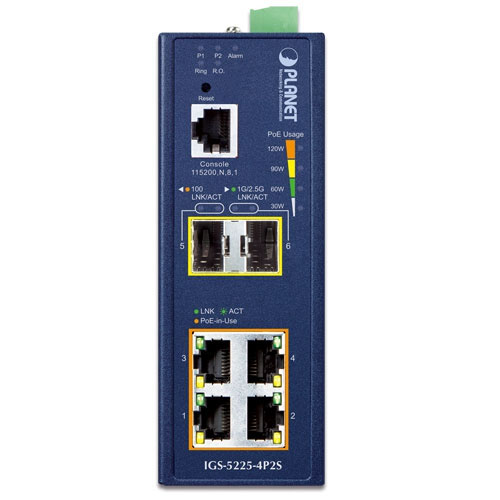

| LED Indicator |
System: |
|
– Power 1 (Green), Power 2 (Green) |
|
– Fault Alarm (Red), Ring (Green) |
|
– R.O. (Ring Owner) (Green) |
| Per 10/100/1000T RJ45 PoE+ Ports |
Port 1 to Port 4: |
|
– PoE-in-use (Amber), LNK/ACT (Green) |
| Per 100/1000/2500BASE-X SFP Interface |
Port 5 to Port 6: |
|
– 1G/2.5G LNK/ACT (Green), 100 LNK/ACT (Amber) |
| 4 x LED for PoE Usage |
30W, 60W, 90W, 120W (Amber) |
| Switching Specifications |
|
| Switch Architecture |
Store-and-Forward |
| Switch Fabric |
18Gbps/non-blocking |
| Throughput (packet per second) |
13.3Mpps @ 64Bytes packet |
| Address Table |
8K entries, automatic source address learning and aging |
| Shared Data Buffer |
4Mbits |
| Flow Control |
IEEE 802.3x pause frame for full duplex |
|
Back pressure for half duplex |
| Jumbo Frame |
9Kbytes |
| Power Over Ethernet |
|
| PoE Standard |
IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type |
End-span |
| PoE Power Output |
IEEE 802.3af Standard: |
|
– Per port 48V~51V DC, max. 15.4 watts |
|
IEEE 802.3at Standard: |
|
– Per port 51V~54V DC, max. 36 watts |
| Power Pin Assignment |
End-span: 1/2(+), 3/6(-) |
| PoE Power Budget |
144W maximum |
| PoE Management Functions |
|
| PoE System Management |
PoE Port status monitoring |
|
Total PoE power budget control |
|
PoE usage threshold and temperature threshold |
| Enhanced PoE Mode |
Standard/Legacy/Force |
| PoE Device Live Detection |
Per port remote PD IP address |
| PoE Power Recycling |
Daily or predefined schedule |
| PoE Schedule |
4 schedule profiles |
| PoE Extend Mode |
Remote power feeding up to 100m/250m |
| Layer 3 Function |
|
| IP Interfaces |
Max. 8 VLAN interfaces |
| Routing Table |
Max. 32 routing entries |
| Routing Protocols |
IPv4 software static routing |
|
IPv6 software static routing |
| Layer 2 Function |
|
| Port Configuration |
Port disable/enable |
|
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection |
|
Flow control disable/enable |
|
Port link capability control |
| Port Status |
Display each port’s status |
| Port Mirroring |
TX/RX/both, Many-to-1 monitor |
| VLAN |
IEEE 802.1Q tag-based VLAN |
|
Private VLAN Edge (PVE), MAC-based VLAN, Protocol-based VLAN |
|
Voice VLAN, MVR, GVRP |
| Spanning Tree Protocol |
IEEE 802.1D, 802.1w, 802.1s |
| Link Aggregation |
IEEE 802.3ad LACP/static trunk |
|
Supports 3 trunk groups with 6 ports per trunk group |
| IGMP Snooping |
IPv4 IGMP (v1/v2/V3) snooping |
|
IPv4 IGMP querier mode support |
| MLD Snooping |
IPv6 MLD (v1/v2) snooping |
|
IPv6 MLD querier mode support |
| Ring |
Supports ERPS, ITU-T G.8032 |
| Synchronization |
IEEE 1588v2 PTP |
| QoS |
Traffic classification based, strict priority and WRR |
|
8-level priority for switching |
| Bandwidth Control |
Per port bandwidth control |
| Storm Control |
Unicast/Multicast/Broadcast |
| Security Functions |
|
| Access Control List |
IP-based ACL/MAC-based ACL |
|
ACL based on various criteria |
| Security |
Port security, IP source guard, Dynamic ARP inspection |
|
Command line authority control |
| AAA |
RADIUS client, TACACS+ client |
| Network Access Control |
IEEE 802.1x port-based control |
|
MAC-based authentication |
| Management |
|
| Basic Management Interfaces |
Console, Telnet, Web browser, SNMP v1, v2c |
| Secure Management Interfaces |
SSHv2, TLSv1.2, SNMP v3 |
| System Management |
Firmware upgrade, Configuration upload/download |
|
Remote syslog, System log, LLDP, NTP |
| Event Management |
Remote syslog, System log, SMTP |
| Standards Conformance |
|
| Regulatory Compliance |
FCC Part 15 Class A, CE |
| Stability Testing |
IEC60068-2-32, -27, -6 |
| Standards Compliance |
IEEE 802.3, 802.1Q, 802.1D, 802.1w, 802.1s, etc. |
| Environment |
|
| Operating Temperature |
-40 ~ 75 degrees C |
| Storage Temperature |
-40 ~ 85 degrees C |
| Humidity |
5 ~ 95% (non-condensing) |
