Mô tả

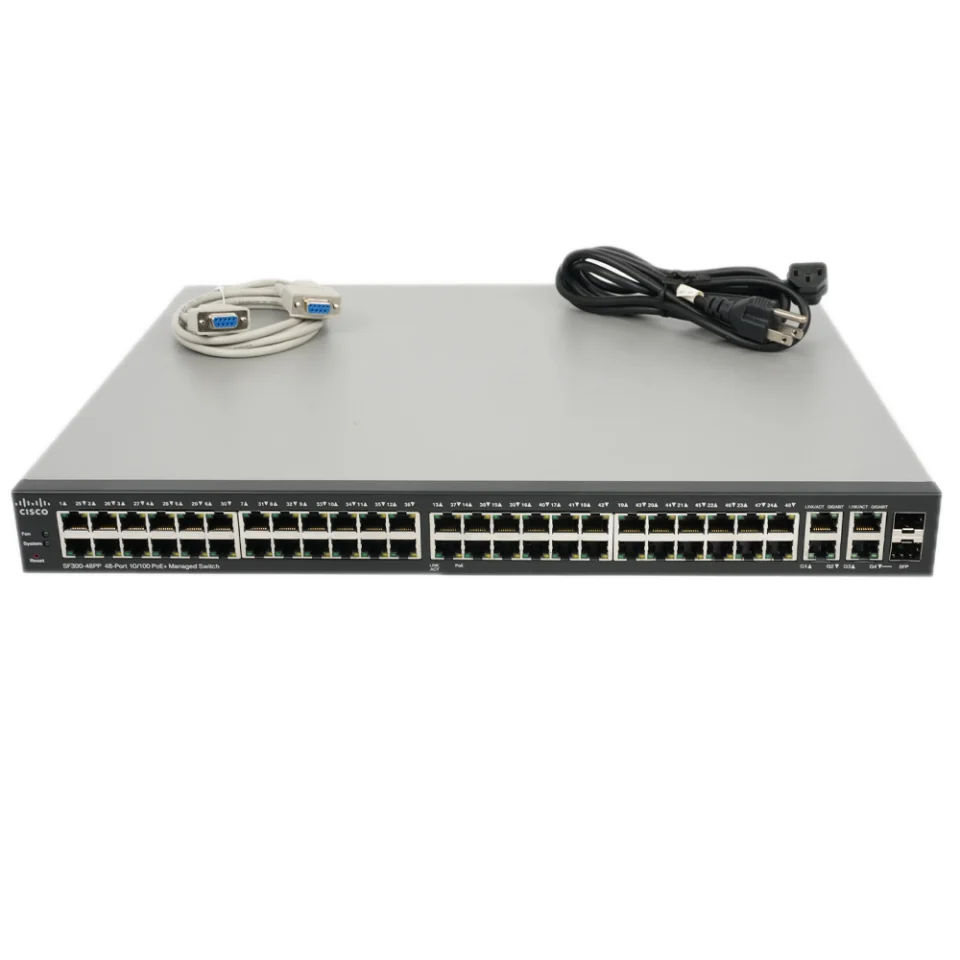

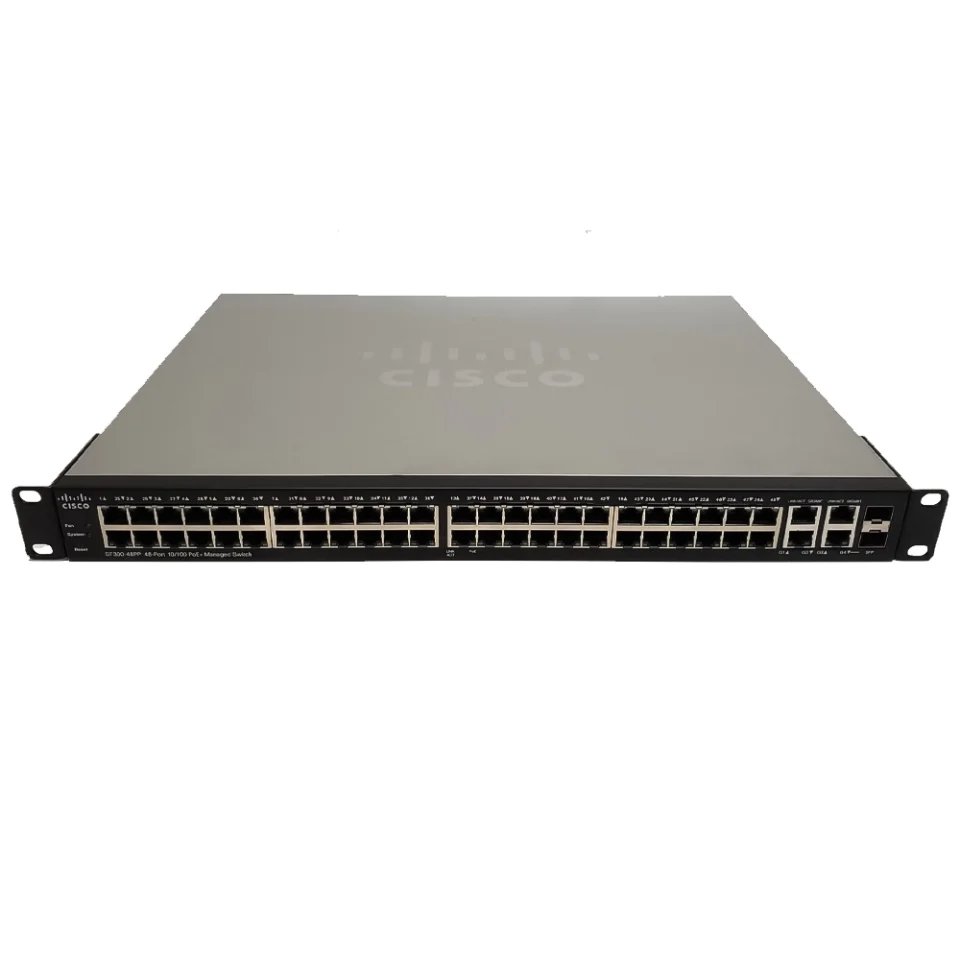

Switch chia mạng Cisco SF300-48PP-K9 – Cisco 48 port 10/100Mbps POE
Giới thiệu chung
Switch chia mạng Cisco SF300-48PP-K9 – Cisco 48 port 10/100Mbps POE là một thiết bị quan trọng dùng để kết nối các đoạn mạng với nhau theo mô hình mạng hình sao (Star). Theo mô hình này, switch đóng vai trò là thiết bị trung tâm, tất cả các máy tính đều được nối về đây trong một hệ thống mạng
Thông số kỹ thuật switch mạng Cisco SF300-48PP-K9
– ID Number: SRW224G4P-K9
– 24 port 10/100Mbps PoE; 2 port 10/100/1000Mbps; 2 Combo mini-GBIC ports.
– Performance: Switching capacity 12.8 Gbps, nonblocking, Forwarding rate 9.52 mpps wire-speed performance
– Layer 2: Port grouping up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation, Number of VLANs 256 active VLANs (4096 range), Head-of-line (HOL) blocking HOL blocking prevention
– Layer 3: IPv4 routing Wirespeed routing of IPv4 packets, Up to 32 static routes and up to 32 IP interfaces, Classless Inter-Domain Routing (CIDR) support for CIDR.
– QoS: Priority levels 4: Hardware queues, Scheduling: Priority queuing and weighted round-robin (WRR), Queue assignment based on DSCP and class of service (802.1p/CoS)
Specifications
Performance |
|
Ports |
24 x RJ45 Fast Ethernet |
2 x RJ45 Gigabit Ethernet | |
2 x RJ45 + SFP Gigabit Ethernet Combo Ports | |
PoE |
24 x RJ45 Fast Ethernet Power Dedicated: 180W |
Speed |
Switching Capacity in Gigabits per Second (Gbps): 12.8 |
Capacity in Millions of Packets per Second (mpps) with each packet being 64-bytes: 9.52 | |
MAC Address Table Size |
Up to 8000 MAC addresses |
Frame Sizes |
Jumbo Frames: Up to 10 KB supported on 10/100 and Gigabit interfaces |
Switching Method |
Managed |
Layer 2 Switching |
Spanning Tree Protocol (STP): |
Standard 802.1d Spanning Tree support | |
Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default | |
Multiple Spanning Tree instances using 802.1s (MSTP) | |
Port grouping: | |
Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP) | |
Up to 8 groups | |
Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation | |
VLAN: | |
Support for up to 256 VLANs simultaneously (out of 4096 VLAN IDs) | |
Port-based and 802.1Q tag-based VLANs | |
MAC-based VLAN | |
Management VLAN | |
Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks | |
Guest VLAN | |
Unauthenticated VLAN | |
Voice Lan: | |
Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS | |
Generic VLAN Registration Protocol (GVRP)/ Generic Attribute Registration Protocol (GARP): | |
Protocols for automatically propagating and configuring VLANs in a bridged domain | |
Dynamic Host Configuration Protocol (DHCP) Relay at Layer 2: | |
Relay of DHCP traffic to DHCP server in different VLAN. Works with DHCP Option 82 | |
Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping: | |
IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 256 multicast groups (source-specific multicasting is also supported) | |
IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router | |
Head-of-line (HOL) blocking: | |
HOL blocking prevention | |
Layer 3 |
IPv4 Routing: Wirespeed routing of IPv4 packets
Up to 32 static routes and up to 32 IP interfaces Classless Inter-Domain Routing (CIDR): Support for CIDR DHCP relay at Layer 3: Relay of DHCP traffic across IP domains User Datagram Protocol (UDP) relay: Relay of broadcast information across Layer 3 domains for application discovery or relaying of BootP/DHCP packets |
Security |
Secure Shell Protocol (SSH): SSH secures Telnet traffic to and from the switch; SSH v1 and v2 are supported |
Secure Sockets Layer (SSL): SSL support: Encrypts all HTTPS traffic, allowing highly secure access to the browser-based management GUI in the switch | |
IEEE 802.1X (Authenticator role): RADIUS authentication and accounting, MD5 hash; guest VLAN; unauthenticated VLAN, single/multiple host mode and single/multiple sessions | |
Supports time-based 802.1X | |
Dynamic VLAN assignment | |
Layer 3 isolation: Allow / disallow routing between IP subnets or directly connected IP networks | |
Layer 2 isolation Private VLAN Edge (PVE) with community VLAN: PVE (also known as protected ports) provides Layer 2 isolation between devices in the same VLAN, supports multiple uplinks | |
Port security: Locks MAC addresses to ports, and limits the number of learned MAC addresses | |
RADIUS/TACACS+: Supports RADIUS and TACACS authentication. Switch functions as a client | |
Storm control: Broadcast, multicast, and unknown unicast | |
DoS prevention: DoS attack prevention | |
Congestion avoidance: | |
A TCP congestion avoidance algorithm is required to minimize and prevent global TCP loss synchronization | |
ACLs: Support for up to 512 rules | |
Drop or rate limit based on source and destination MAC, VLAN ID or IP address, protocol, port, differentiated services code point (DSCP)/IP precedence, TCP/ UDP source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, IGMP packets, TCP flag | |
Buttons |
Reset button |
LED |
System, Link/Act, PoE, Speed |
Memory |
CPU: 128 MB |
Flash: 16 MB | |
Buffer |
Packet Buffer: 4 Mb |
Fan |
2 pcs |
Acoustic Noise |
41.0 dB |
MTBF |
241995.9 hours |
Certification |
UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
Form Factor |
1U |
Power Requirements |
100-240V 47-63 Hz, internal, universal |
Power Consumption |
110V (219.9W) |
220V (213.8W) | |
Dimensions |
44 x 4.44 x 25.7 cm |
Weight |
3.73 kg |
Switch chia mạng Cisco SF300-48PP-K9 được cung cấp chính hãng, uy tín tại Viễn Thông Xanh
