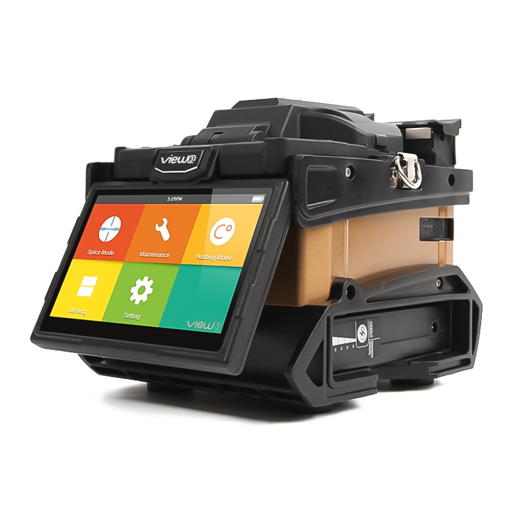

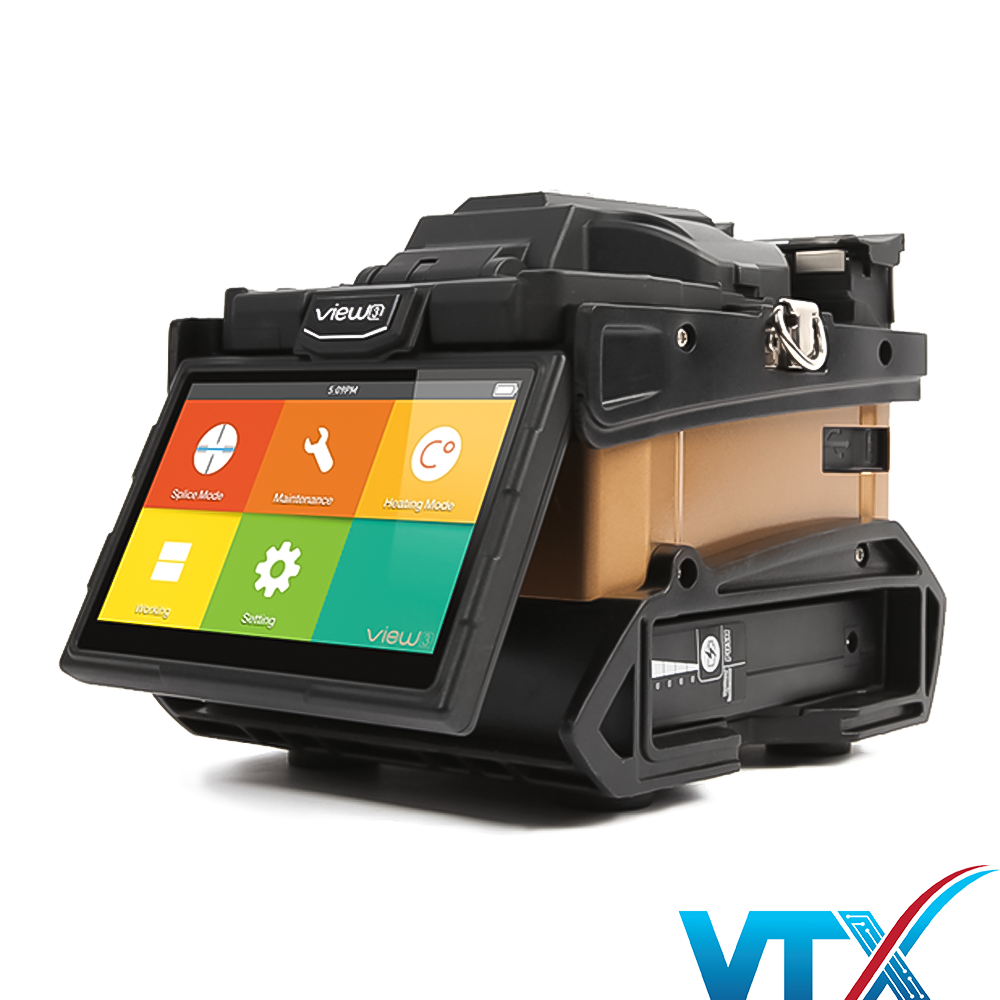

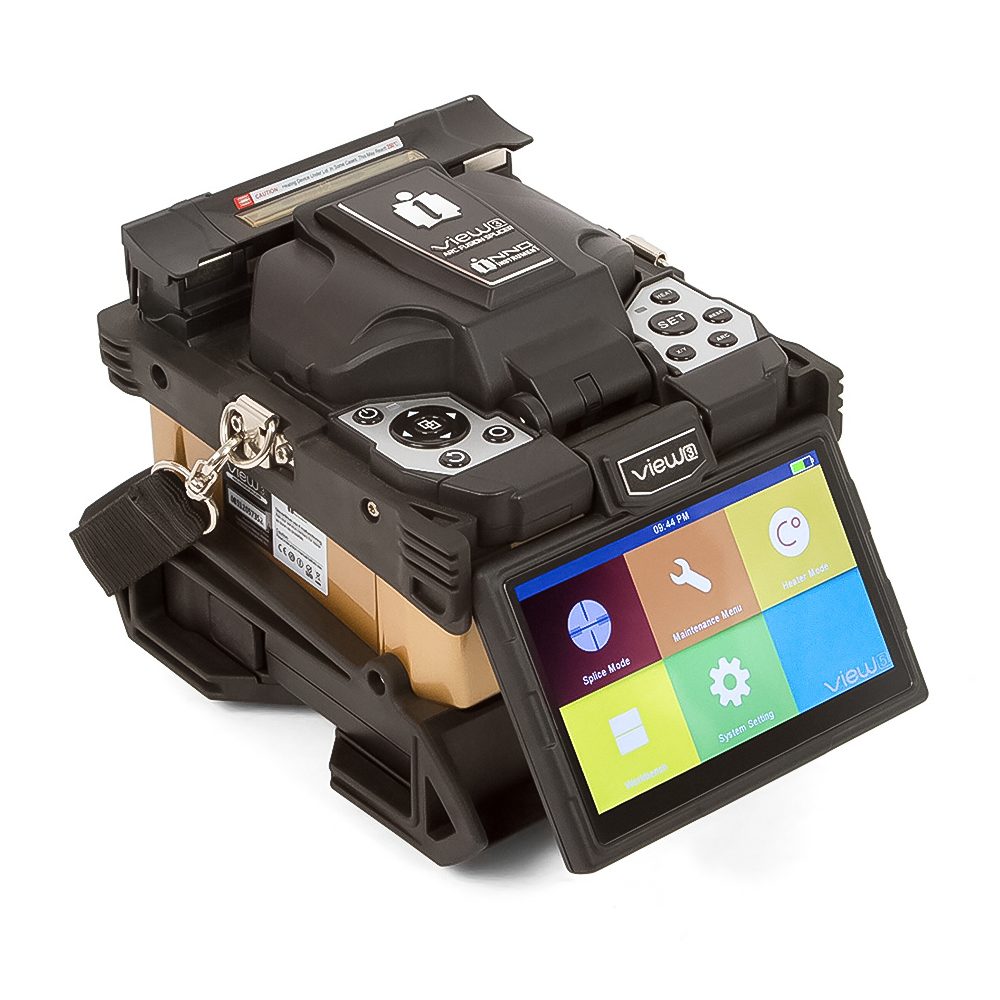

Máy hàn quang View 3L chính hãng chất lượng cao

– Model :View 3

– Dimension :143H x 130W x 155D mm (excluding rubber bumper) / 152H x – 147W x 175D mm (including rubber bumper)

– Typical Splice Loss SM: 0.02dB / MM:0.01dB / DS:0.04dB / NZDS: 0.04dB – G.657: 0.02dB(ITU-T Standard)

– Return Loss :>>60dB

– Lighting :3 White LEDs

– Weight : 2.31KG (with battery) / 1.95KG (without battery)

– Number of Fiber :Single

– Applicable Fibers :SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)

– Compatible Fiber / Cable :0.25~3.0 mm / Indoor Cable

– Cleaved Length Diameter: 0.125~1 mm / Cleave Length: 8~16 mm

– Heating Time Typical heating time: 35 sec

– Results Storage :The last 2000 results

– Tension Test :1.96~2.25N

– Splicing Mode :Preset 7 modes / Max 128 modes

– Splicing Time Auto mode : 9 sec / Quick mode : 7 sec

– Estimated Splice Loss :Available

– Protection Sleeve Length: 20~60 mm

– Operating Condition Operating Altitude: 0~5000m above sea level, 0~95% relative humidity, -10~50°C, Max Wind 15m/s

– No. of Splice / Heating with Battery :4200mAh Battery Capacity, Typical 170 times (Splice+Heat)

– Operating Methods :Button / Touch screen

– Automatic Calibration : Automatic arc calibration by air pressure and temperature

– Electrode Life : 3500 arcs, can be extended by using an electrode grinder

– Terminal USB : 2.0 / MINI USB / HDMI

– Storage Condition : 0~95% relative humidity, -40~80°C

– Display: 90° bi-directional view, 5.0” Color High Resolution Display

– Fiber View & Magnification :X, Y, XY, X/Y : 520X Magnification

– Power Supply :AC Input 100-240V, DC Input 9-14V
